Xs W size
products

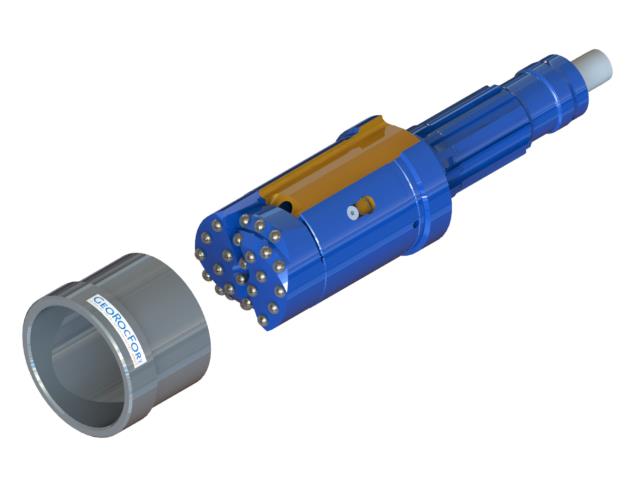

Using this proven system can be relatively economic when drilling shallow holes in soft ground conditions.
The wings are deployed when the rotation is engaged, drilling a sufficiently large diameter so that the casing can pass through the hole with enough clearance
Technical
data
Technical Data
| Casing OD | 5,500" | 139.7mm |
| Max. Wall | 0,275" | 7mm |
| Extended OD (A) | 6,000" | 152.4mm |
| Retracted OD (B) | 4,490" | 114mm |
| Driver OD (C) | 4,920" | 125mm |
| Drive Shoe ID (D) | 4,580" | 116.3mm |
| Hammer Size | 4" | 101.6mm |
Product number
| Drive shoe (add casing wall at the end) | SSO-XSW114-5.5X*** |
| Complete Kit (add shank type at the end) | XS-W-K5.5/114/*** |
| Replacement Wings kit | XS-W-W5.5 |
| Replacement Driver Bit (add shank type at the end) | XS-W-DR5.5/114/*** |
| Replacement Retaining Pins kit | XS-W-P5.5 |
Technical Data
| Casing OD | 6,625" | 168.3mm |
| Max. Wall | 0,295" | 7.5mm |
| Extended OD (A) | 7,250" | 184.2mm |
| Retracted OD (B) | 5,530" | 140.5mm |
| Driver OD (C) | 5,970" | 151.6mm |
| Drive Shoe ID (D) | 5,660" | 143.8mm |
| Hammer Size | 5" | 127mm |
Product number
| Drive shoe (add casing wall at the end) | SSO-XSW142-6.6X*** |
| Complete Kit (add shank type at the end) | XS-W-K6.6/142/*** |
| Replacement Wings kit | XS-W-W6.6 |
| Replacement Driver Bit (add shank type at the end) | XS-W-DR6.6/142/*** |
| Replacement Retaining Pins kit | XS-W-P6.6 |
Technical Data
| Casing OD | 8,625" | 219mm |
| Max. Wall | 0,330" | 8.4mm |
| Extended OD (A) | 9,313" | 236.5mm |
| Retracted OD (B) | 7,380" | 187.5mm |
| Driver OD (C) | 7,910" | 201mm |
| Drive Shoe ID (D) | 7,535" | 191.4mm |
| Hammer Size | 6" | 152.4mm |
Product number
| Drive shoe (add casing wall at the end) | SSO-XSW187-8.6X*** |
| Complete Kit (add shank type at the end) | XS-W-K8.6/187/*** |
| Replacement Wings kit | XS-W-W8.6 |
| Replacement Driver Bit (add shank type at the end) | XS-W-DR8.6/187/*** |
| Replacement Retaining Pins kit | XS-W-W8.6 |
Technical Data
| Casing OD | 9,625" | 244.5mm |
| Max. Wall | 0,375" | 9.5mm |
| Extended OD (A) | 10,375" | 263mm |
| Retracted OD (B) | 8,270" | 210mm |
| Driver OD (C) | 8,800" | 223.6mm |
| Drive Shoe ID (D) | 8,350" | 212mm |
| Hammer Size | 8" | 203.2mm |
Product number
| Drive shoe (add casing wall at the end) | SSO-XSW210-9.6X*** |
| Complete Kit (add shank type at the end) | XS-W-K9.6/210/*** |
| Replacement Wings kit | XS-W-W9.6 |
| Replacement Driver Bit (add shank type at the end) | XS-W-DR9.6/210/*** |
| Replacement Retaining Pins kit | XS-W-W9.6 |
