Using this proven system can be relatively economic when drilling shallow holes in soft ground conditions.

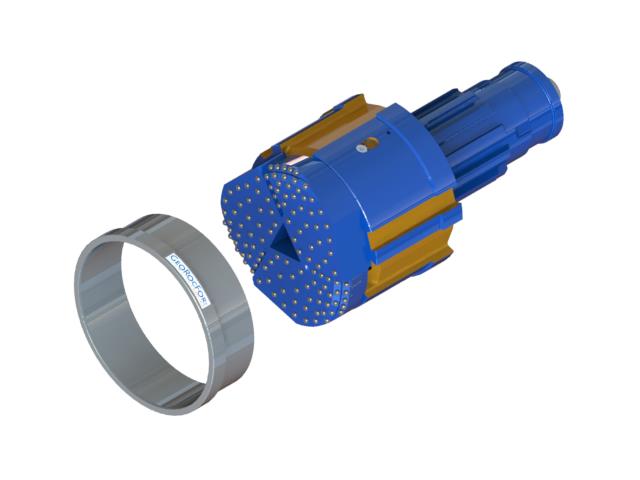

The wings are deployed when the rotation is engaged, drilling a sufficiently large diameter so that the casing can pass through the hole with enough clearance
Technical
data
Technical Data
| Casing OD | 20,000" | 508mm |
| Max. Wall | 0,513" | 13mm |
| Extended OD (A) | 21,000" | 533.4mm |
| Retracted OD (B) | 18,230" | 463mm |
| Driver OD (C) | 18,870" | 479.3mm |
| Drive Shoe ID (D) | 18,310" | 465mm |
| Hammer Size | 18" | 457.2mm |
Product number
| Drive shoe (add casing wall at the end) | SSO-XSW463-20.0X*** |
| Complete Kit (add shank type at the end) | XS-W-K20.0/463/*** |
| Replacement Wings kit | XS-W-W20.0 |
| Replacement Driver Bit (add shank type at the end) | XS-W-K20.0/463/*** |
| Replacement Retaining Pins kit | XS-W-W20.0 |
Technical Data
| Casing OD | 22,000" | 558.8mm |
| Max. Wall | 0,513" | 13mm |
| Extended OD (A) | 23,000" | 584.2mm |
| Retracted OD (B) | 20,120" | 511mm |
| Driver OD (C) | 20,870" | 530mm |
| Drive Shoe ID (D) | 20,200" | 513mm |
| Hammer Size | 18" | 457.2mm |
Product number
| Drive shoe (add casing wall at the end) | SSO-XSW511-22.0X*** |
| Complete Kit (add shank type at the end) | XS-W-K22.0/511/*** |
| Replacement Wings kit | XS-W-W22.0 |
| Replacement Driver Bit (add shank type at the end) | XS-W-K22.0/511/*** |
| Replacement Retaining Pins kit | XS-W-W22.0 |
Technical Data
| Casing OD | 24,000" | 609.6mm |
| Max. Wall | 0,513" | 13mm |
| Extended OD (A) | 25,000" | 635mm |
| Retracted OD (B) | 22,100" | 561mm |
| Driver OD (C) | 22,860" | 580.6mm |
| Drive Shoe ID (D) | 22,170" | 563.1mm |
| Hammer Size | 24" | 609.6mm |
Product number
| Drive shoe (add casing wall at the end) | SSO-XSW561-24.0X*** |
| Complete Kit (add shank type at the end) | XS-W-DR24.0/561/*** |
| Replacement Wings kit | XS-W-P24.0 |
| Replacement Driver Bit (add shank type at the end) | XS-W-DR24.0/561/*** |
| Replacement Retaining Pins kit | XS-W-P24.0 |
