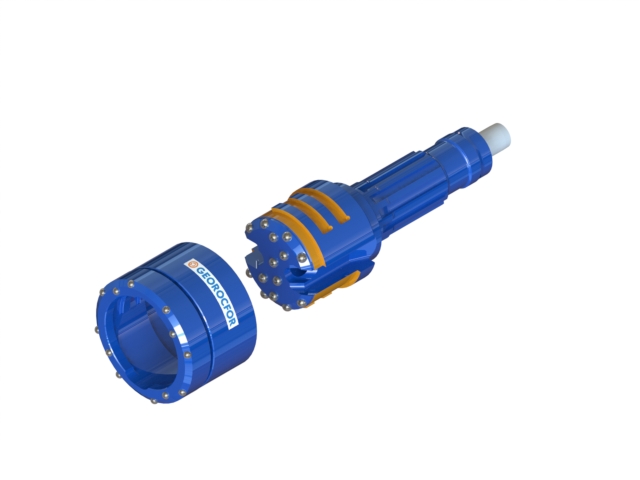

Xs T V2.0
size products
This system is used for deep hole drilling when permanent casing installation is required. Reduced sub drilling diameter equivalent to all other systems on the market.
Advantages
- Best crown life on the market
- Easy to lock in the crown even with air on.
Most popular applications
Water well and thermal well
Technical
data
Technical Data
| Casing OD | 6,000" | 152.4mm |
| Max. Wall | 0,393" | 10mm |
| Crown OD (A) | 6,750" | 171.5mm |
| Crown ID (B) | 4,770" | 121.2mm |
| Driver OD | 5,140" | 130.6mm |
| Hammer Size | 5" | 127mm |
Product number
| Standard Crown | XS-T/V2-CR6.00/PLUS |
| SA Crown (severe application) | XS-T/V2-CR6.00/SA |
| Driver Bit (add shank type at the end) | XS-T/V2-DR6.00/*** |
Technical Data
| Casing OD | 6,625" | 168.3mm |
| Max. Wall | 0,280" | 7mm |
| Crown OD (A) | 7,500" | 190.5mm |
| Crown ID (B) | 5,590" | 142mm |
| Driver OD | 6,000" | 152.4mm |
| Hammer Size | 5" | 127mm |
Product number
| Standard Crown | XS-T/V2-CR6.625/PLUS |
| SA Crown (severe application) | XS-T/V2-CR6.625/SA |
| Driver Bit (add shank type at the end) | XS-T/V2-DR6.625/*** |
Technical Data
| Casing OD | 7,000" | 177.8mm |
| Max. Wall | 0,250" | 6.3mm |
| Crown OD (A) | 8,000" | 203.2mm |
| Crown ID (B) | 6,030" | 153.2mm |
| Driver OD | 6,430" | 163.3mm |
| Hammer Size | 5" | 127mm |
Product number
| Standard Crown | XS-T/V2-CR7.00/PLUS |
| SA Crown (severe application) | XS-T/V2-CR7.00/SA |
| Driver Bit (add shank type at the end) | XS-T/V2-DR7.00/*** |
