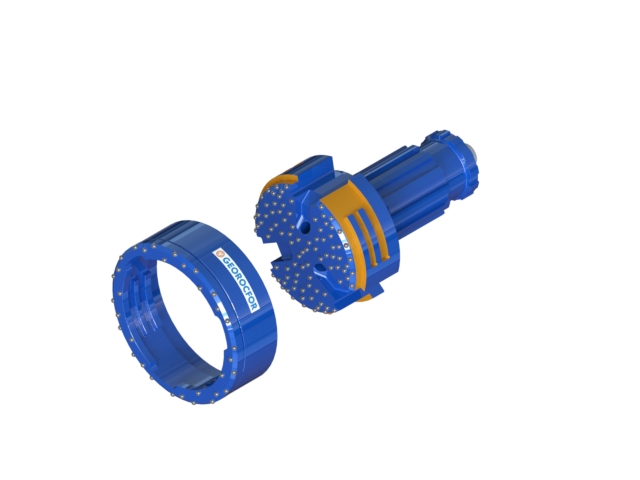

Xs T V2.0
size products
This system is used for deep hole drilling when permanent casing installation is required. Reduced sub drilling diameter equivalent to all other systems on the market.
Advantages
- Best crown life on the market
- Easy to lock in the crown even with air on.
Most popular applications
Water well and thermal well
Technical
data
Technical Data
| Casing OD | 20,000" | 508mm |
| Max. Wall | 0,593" | 15mm |
| Crown OD (A) | 22,000" | 558.8mm |
| Crown ID (B) | 17,200" | 437mm |
| Driver OD | 18,680" | 474.5mm |
| Hammer Size | 15" | 381mm |
Product number
| Standard Crown | XS-T-CR20.00/PLUS |
| SA Crown (severe application) | XS-T-CR20.00/SA |
| Driver Bit (add shank type at the end) | XS-T-DR20.00/*** |
Technical Data
| Casing OD | 22,000" | 558.8mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 24,000" | 609.6mm |
| Crown ID (B) | 19,000" | 482.6mm |
| Driver OD | 20,630" | 524mm |
| Hammer Size | 18" | 457.2mm |
Product number
| Standard Crown | XS-T-CR22.00/PLUS |
| SA Crown (severe application) | XS-T-CR22.00/SA |
| Driver Bit (add shank type at the end) | XS-T-DR22.00/*** |
Technical Data
| Casing OD | 24,000" | 609.6mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 26,000" | 660.4mm |
| Crown ID (B) | 21,000" | 533.4mm |
| Driver OD | 22,630" | 574.8mm |
| Hammer Size | 18" | 457.2mm |
Product number
| Standard Crown | XS-T-CR24.00/PLUS |
| SA Crown (severe application) | XS-T-CR24.00/SA |
| Driver Bit (add shank type at the end) | XS-T-DR24.00/*** |
Technical Data
| Casing OD | 26,000" | 660.4mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 28,000" | 711.2mm |
| Crown ID (B) | 23,000" | 584.2mm |
| Driver OD | 24,630" | 625,6mm |
| Hammer Size | 24" | 609.6mm |
Product number
| Standard Crown | XS-T-CR26.00/PLUS |
| SA Crown (severe application) | XS-T-CR26.00/SA |
| Driver Bit (add shank type at the end) | XS-T-DR26.00/*** |
Technical Data
| Casing OD | 28,000" | 711.2mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 30,000" | 762mm |
| Crown ID (B) | 25,000" | 635mm |
| Driver OD | 26,630" | 676.4mm |
| Hammer Size | 24" | 609.6mm |
Product number
| Standard Crown | XS-T-CR28.00/PLUS |
| SA Crown (severe application) | XS-T-CR28.00/SA |
| Driver Bit (add shank type at the end) | XS-T-DR28.00/*** |
