Xs T V2.0
size products

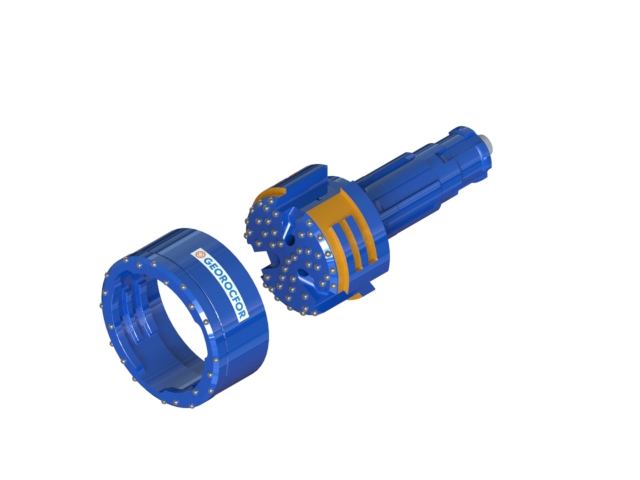

This system is used for deep hole drilling when permanent casing installation is required. Reduced sub drilling diameter equivalent to all other systems on the market.
Advantages
- Best crown life on the market
- Easy to lock in the crown even with air on.
Most popular applications
Water well and thermal well
Technical
data
Technical Data
| Casing OD | 16,000" | 406.4mm |
| Max. Wall | 0,500" | 12.7mm |
| Crown OD (A) | 17,750" | 451mm |
| Crown ID (B) | 13,800" | 350.5mm |
| Driver OD | 14,900" | 378.5mm |
| Hammer Size | 12" | 304.8mm |
Product number
| Standard Crown | XS-T/V2-CR16.00/PLUS |
| SA Crown (severe application) | XS-T/V2-CR16.00/SA |
| Driver Bit (add shank type at the end) | XS-T/V2-DR16.00/*** |
Technical Data
| Casing OD | 18,000" | 457.2mm |
| Max. Wall | 0,500" | 12.7mm |
| Crown OD (A) | 19,600" | 497,8mm |
| Crown ID (B) | 15,800" | 401,3mm |
| Driver OD | 16,900" | 429,2mm |
| Hammer Size | 12'' / 15" |
Product number
| Standard Crown | XS-T/V2-CR18.00/PLUS |
| SA Crown (severe application) | XS-T/V2-CR18.00/SA |
| Driver Bit (add shank type at the end) | XS-T/V2-DR18.00/*** |
