Xs T size
products

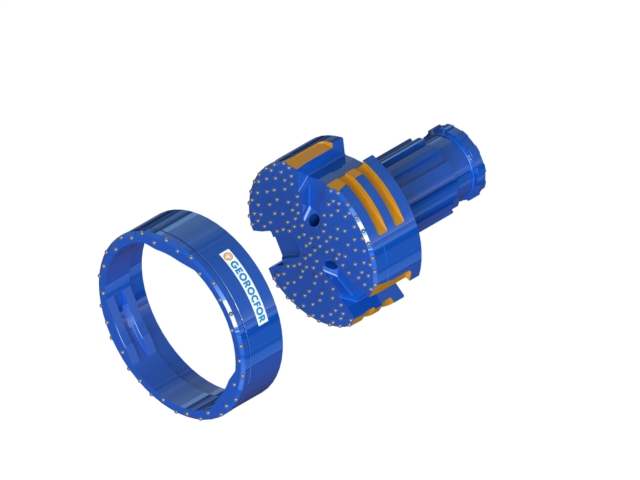

This system is used for deep hole drilling when permanent casing installation and sub drilling are required with thick wall casing.
Advantages
- Best crown life on the market
- Makes a bigger hole in bedrock when
sub drilling.
Most popular applications
Water well and Geothermal well
Technical
data
Technical Data
| Casing OD | 20,000" | 508mm |
| Max. Wall | 0,515" | 13mm |
| Crown OD (A) | 22,500" | 571.5mm |
| Crown ID (B) | 18,950" | 481.3mm |
| Crown A/F (C) | 17,080" | 434mm |
| Driver OD | 18,875" | 479.5mm |
| Sq. Bit OD | 18,875" | 479.5mm |
| Hammer Size | 15" | 381mm |
Product number
| Standard Crown | XS-T-CR20.00/PLUS |
| SA Crown (severe application) | XS-T-CR20.00/SA |
| Driver Bit (add shank type at the end) | XS-T-DR20.00/*** |
| Square Bit (add shank type at the end) | XS-T-BI20.00/*** |
Technical Data
| Casing OD | 22,000" | 558.8mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 24,000" | 609.6mm |
| Crown ID (B) | 20,750" | 527mm |
| Crown A/F (C) | 18,950" | 481.3mm |
| Driver OD | 20,625" | 523.9mm |
| Sq. Bit OD | 20,625" | 523.9mm |
| Hammer Size | 18" | 457.2mm |
Product number
| Standard Crown | XS-T-CR22.00/PLUS |
| SA Crown (severe application) | XS-T-CR22.00/SA |
| Driver Bit (add shank type at the end) | XS-T-DR22.00/*** |
| Square Bit (add shank type at the end) | XS-T-BI22.00/*** |
Technical Data
| Casing OD | 24,000" | 609.6mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 26,000" | 660.4mm |
| Crown ID (B) | 20,750" | 577.9mm |
| Crown A/F (C) | 20,950" | 532.1mm |
| Driver OD | 22,625" | 574.7mm |
| Sq. Bit OD | 22,625" | 574.7mm |
| Hammer Size | 18" | 457.2mm |
Product number
| Standard Crown | XS-T-CR24.00/PLUS |
| SA Crown (severe application) | XS-T-CR24.00/SA |
| Driver Bit (add shank type at the end) | XS-T-DR24.00/*** |
| Square Bit (add shank type at the end) | XS-T-BI24.00/*** |
Technical Data
| Casing OD | 26,000" | 660.4mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 28,000" | 711.2mm |
| Crown ID (B) | 24,750" | 628.7mm |
| Crown A/F (C) | 22,950" | 583mm |
| Driver OD | 24,625" | 625.5mm |
| Sq. Bit OD | 24,625" | 625.5mm |
| Hammer Size | 24" | 609.6mm |
Product number
| Standard Crown | XS-T-CR26.00/PLUS |
| SA Crown (severe application) | XS-T-CR26.00/SA |
| Driver Bit (add shank type at the end) | XS-T-DR26.00/*** |
| Square Bit (add shank type at the end) | XS-T-BI26.00/*** |
Technical Data
| Casing OD | 28,000" | 711.2mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 30,000" | 762mm |
| Crown ID (B) | 26,750" | 679.5mm |
| Crown A/F (C) | 24,950" | 633.7mm |
| Driver OD | 26,625" | 676.3mm |
| Sq. Bit OD | 26,625" | 676.3mm |
| Hammer Size | 24" | 609.6mm |
Product number
| Standard Crown | XS-T-CR28.00/PLUS |
| SA Crown (severe application) | XS-T-CR28.00/SA |
| Driver Bit (add shank type at the end) | XS-T-DR28.00/*** |
| Square Bit (add shank type at the end) | XS-T-BI28.00/*** |
Technical Data
| Casing OD | 30,000" | 762mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 32,500" | 825.5mm |
| Crown ID (B) | 28,750" | 730.3mm |
| Crown A/F (C) | 26,450" | 671.8mm |
| Driver OD | 28,500" | 724mm |
| Sq. Bit OD | 28,500" | 724mm |
| Hammer Size | 24" | 609.6mm |
Product number
| Standard Crown | XS-T-CR30.00/PLUS |
| SA Crown (severe application) | XS-T-CR30.00/SA |
| Driver Bit (add shank type at the end) | XS-T-DR30.00/*** |
| Square Bit (add shank type at the end) | XS-T-BI30.00/*** |
Technical Data
| Casing OD | 32,000" | 812.8mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 34,500" | 876.3mm |
| Crown ID (B) | 30,750" | 781mm |
| Crown A/F (C) | 28,450" | 722.6mm |
| Driver OD | 30,500" | 774.7mm |
| Sq. Bit OD | 30,500" | 774.7mm |
| Hammer Size | 24" | 609.6mm |
Product number
| Standard Crown | XS-T-CR32.00/PLUS |
| SA Crown (severe application) | XS-T-CR32.00/SA |
| Driver Bit (add shank type at the end) | XS-T-DR32.00/*** |
| Square Bit (add shank type at the end) | XS-T-BI32.00/*** |
Technical Data
| Casing OD | 36,000" | 914.4mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 38,500" | 977.9mm |
| Crown ID (B) | 34,750" | 882.7mm |
| Crown A/F (C) | 32,450" | 824.2mm |
| Driver OD | 34,500" | 876.3mm |
| Sq. Bit OD | 34,500" | 876.3mm |
| Hammer Size | 24" / 30" | 609.6mm / 762mm |
Product number
| Standard Crown | XS-T-CR36.00/PLUS |
| SA Crown (severe application) | XS-T-CR36.00/SA |
| Driver Bit (add shank type at the end) | XS-T-DR36.00/*** |
| Square Bit (add shank type at the end) | XS-T-BI36.00/*** |
