Xs S size
products

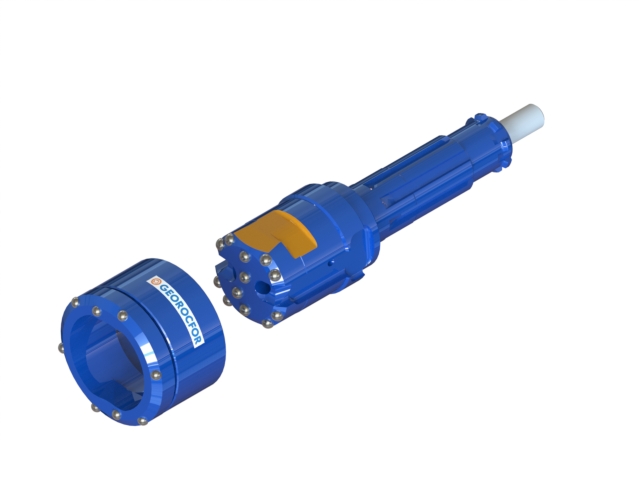

This system is used for deep hole drilling where permanent casing installation and sub drilling is required.
Advantages
- Best crown life on the market
- Makes a bigger hole in bedrock when
sub drilling.
Most popular applications
Water well and Geothermal well
Technical
data
Technical Data
| Casing OD | 4,500" | 114.3mm |
| Max. Wall | 0,197" | 5mm |

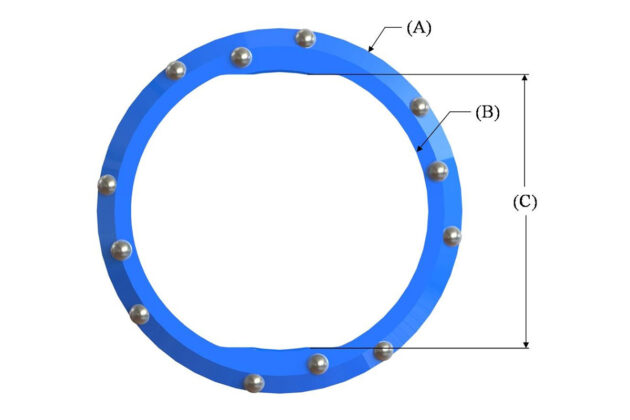

| Crown OD (A) | 5,250" | 133.4mm |
| Crown ID (B) | 3,900" | 99.1mm |
| Crown A/F (C) | 3,450" | 87.6mm |
| Driver OD | 4,050" | 102.9mm |
| Sq. Bit OD | 3,850" | 97.8mm |
| Hammer Size | 3" / 3,5" | 76.2mm/88.9mm |
Product number
| Standard Crown | XS-S-CR4.50/PLUS |
| SA Crown (severe application) | XS-S-CR4.50/SA |
| Driver Bit (add shank type at the end) | XS-S-DR4.50/*** |
| Square Bit (add shank type at the end) | XS-S-BI4.50/*** |
Technical Data
| Casing OD | 5,000" | 127mm |
| Max. Wall | 0,312" | 7.9mm |
| Crown OD (A) | 5,750" | 146mm |
| Crown ID (B) | 4,180" | 106.2mm |
| Crown A/F (C) | 3,780" | 96mm |
| Driver OD | 4,330" | 110mm |
| Sq. Bit OD | 4,125" | 104.8mm |
| Hammer Size | 4" | 101.6mm |
Product number
| Standard Crown | XS-S-CR5.00/PLUS |
| SA Crown (severe application) | XS-S-CR5.00/SA |
| Driver Bit (add shank type at the end) | XS-S-DR5.00/*** |
| Square Bit (add shank type at the end) | XS-S-BI5.00/*** |
Technical Data
| Casing OD | 5,500" | 139.7mm |
| Max. Wall | 0,188" | 4.8mm |
| Crown OD (A) | 6,250" | 158.8mm |
| Crown ID (B) | 4,875" | 123.9mm |
| Crown A/F (C) | 4,375" | 111.1mm |
| Driver OD | 5,060" | 128.5mm |
| Sq. Bit OD | 4,813" | 122.3mm |
| Hammer Size | 4" | 101.6mm |
Product number
| Standard Crown | XS-S-CR5.50/PLUS |
| SA Crown (severe application) | XS-S-CR5.50/SA |
| Driver Bit (add shank type at the end) | XS-S-DR5.50/*** |
| Square Bit (add shank type at the end) | XS-S-BI5.50/*** |
