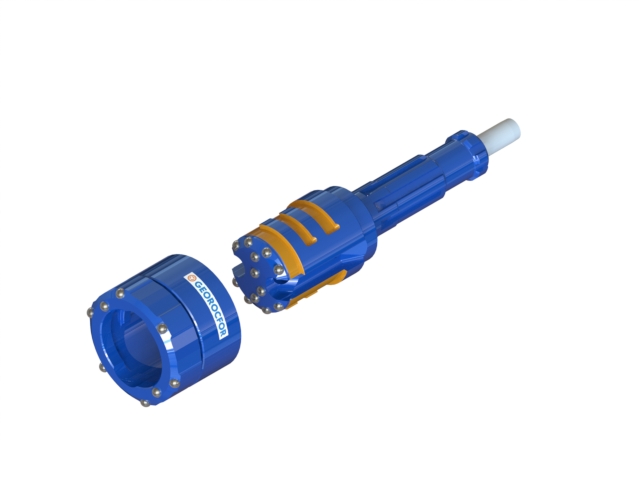

Xs RU size
products
This system is used when casing needs to be retrieved. Possibility of reutilizing the crown in a Severe Application configuration.
Advantages
- Best crown life on the market
- Drills just slightly bigger than the casing
Most popular applications
Anchoring, geothermal well, horizontal, piling, micropiling and site investigation
Technical
data
Technical Data
| Casing OD | 4,500" | 114.3mm |
| Max. Wall | 0,512" | 9.5mm |
| Crown OD (A) | 4,750" | 108mm |
| Crown ID (B) | 3,040" | 70.9mm |
| Driver OD | 3,190" | 81mm |
| Hammer Size | 2" | 50.8mm |
Product number
| Standard Crown | XS-RU-CR4.50/PLUS |
| SA Crown (severe application) | XS-RU-CR4.50/SA |
| Driver BIt (add shank type at the end) | XS-RU-DR4.50/*** |
Technical Data
| Casing OD | 5,000" | 127mm |
| Max. Wall | 0,512" | 13mm |
| Crown OD (A) | 5,250" | 133.4mm |
| Crown ID (B) | 3,460" | 88mm |
| Driver OD | 3,770" | 95.8mm |
| Hammer Size | 3.5" | 88.9mm |
Product number
| Standard Crown | XS-RU-CR5.00/PLUS |
| SA Crown (severe application) | XS-RU-CR5.00/SA |
| Driver BIt (add shank type at the end) | XS-RU-DR5.00/*** |
Technical Data
| Casing OD | 5,500" | 139.7mm |
| Max. Wall | 0,563" | 14.3mm |
| Crown OD (A) | 5,750" | 146mm |
| Crown ID (B) | 3,840" | 97.5mm |
| Driver OD | 4,190" | 106.4mm |
| Hammer Size | 4" | 101.6mm |
Product number
| Standard Crown | XS-RU-CR5.50/PLUS |
| SA Crown (severe application) | XS-RU-CR5.50/SA |
| Driver BIt (add shank type at the end) | XS-RU-DR5.50/*** |
Technical Data
| Casing OD | 6,000" | 152.4mm |
| Max. Wall | 0,563" | 14.3mm |
| Crown OD (A) | 6,313" | 160.4mm |
| Crown ID (B) | 4,290" | 109mm |
| Driver OD | 4,670" | 118.6mm |
| Hammer Size | 4" | 101.6mm |
Product number
| Standard Crown | XS-RU-CR6.00/PLUS |
| SA Crown (severe application) | XS-RU-CR6.00/SA |
| Driver BIt (add shank type at the end) | XS-RU-DR6.00/*** |
Technical Data
| Casing OD | 6,625" | 168.3mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 7,000" | 177.8mm |
| Crown ID (B) | 4,780" | 121.4mm |
| Driver OD | 5,180" | 131.6mm |
| Hammer Size | 5" | 127mm |
Product number
| Standard Crown | XS-RU-CR6.625/PLUS |
| SA Crown (severe application) | XS-RU-CR6.625/SA |
| Driver BIt (add shank type at the end) | XS-RU-DR6.625/*** |
Technical Data
| Casing OD | 6,625" | 177.8mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 7,375" | 187.3mm |
| Crown ID (B) | 5,090" | 129.3mm |
| Driver OD | 5,500" | 139.7mm |
| Hammer Size | 5" | 127mm |
Product number
| Standard Crown | XS-RU-CR7.00/PLUS |
| SA Crown (severe application) | XS-RU-CR7.00/SA |
| Driver BIt (add shank type at the end) | XS-RU-DR7.00/*** |
