Xs RU size
products

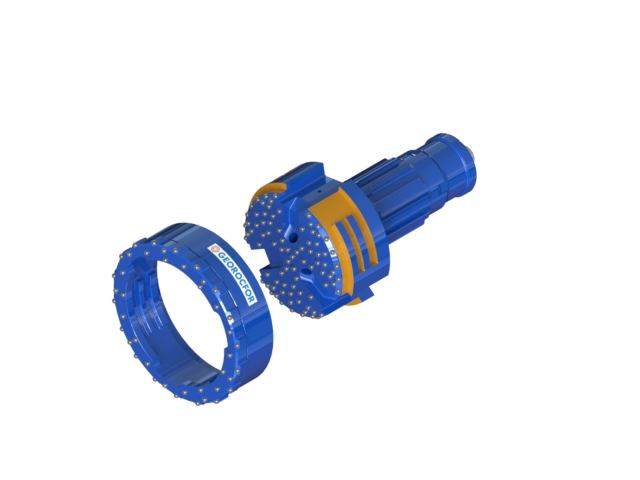

This system is used when casing needs to be retrieved. Possibility of reutilizing the crown in a Severe Application configuration.
Advantages
- Best crown life on the market
- Drills just slightly bigger than the casing
Most popular applications
Anchoring, geothermal well, horizontal, piling, micropiling and site investigation
Technical
data
Technical Data
| Casing OD | 30,000" | 762mm |
| Max. Wall | 1,000" | 26mm |
| Crown OD (A) | 31,000" | 787.4mm |
| Crown ID (B) | 24,300" | 617.2mm |
| Driver OD | 26,200" | 665.5mm |
| Hammer Size | 24" | 609.6mm |
Product number
| Standard Crown | XS-RU-CR30.00/PLUS |
| SA Crown (severe application) | XS-RU-CR30.00/SA |
| Driver BIt (add shank type at the end) | XS-RU-DR30.00/*** |
Technical Data
| Casing OD | 32,000" | 812.8mm |
| Max. Wall | 1,000" | 26mm |
| Crown OD (A) | 33,000" | 838.2mm |
| Crown ID (B) | 26,300" | 668mm |
| Driver OD | 28,200" | 716.3mm |
| Hammer Size | 24" | 609.6mm |
Product number
| Standard Crown | XS-RU-CR32.00/PLUS |
| SA Crown (severe application) | XS-RU-CR32.00/SA |
| Driver BIt (add shank type at the end) | XS-RU-DR32.00/*** |
Technical Data
| Casing OD | 36,000" | 914.4mm |
| Max. Wall | 1,000" | 26mm |
| Crown OD (A) | 37,000" | 939.8mm |
| Crown ID (B) | 30,300" | 769.6mm |
| Driver OD | 32,200" | 818mm |
| Hammer Size | 24" | 609.6mm |
Product number
| Standard Crown | XS-RU-CR36.00/PLUS |
| SA Crown (severe application) | XS-RU-CR36.00/SA |
| Driver BIt (add shank type at the end) | XS-RU-DR36.00/*** |
