Xs GTE3 size
products

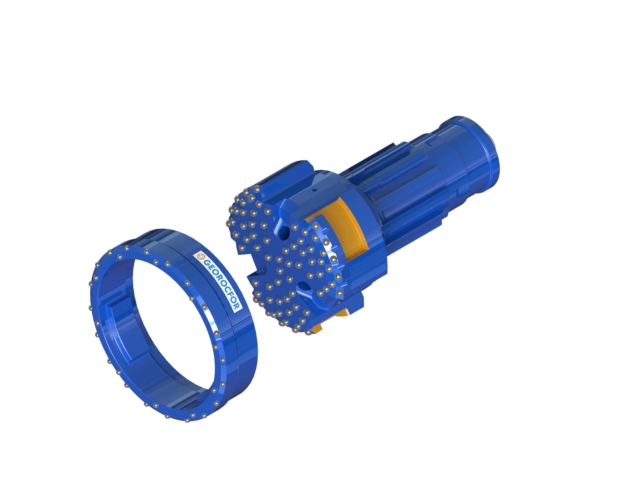

This economical system is used for shallow to moderate hole drilling when permanent or temporary casing installation is required. Casing installation and bedrock drilling is done with the same driver bit.
Advantages
- Best pass through system on the market
- More convenient
- Installation of the casing and rock drilling with same driver bit.
Most popular applications
Piling, micropiling and site investigation
Technical
data
Technical Data
| Casing OD | 18,000" | 457.2mm |
| Max. Wall | 0,787" | 20mm |
| Crown OD (A) | 18,500" | 470mm |
| Crown ID (B) | 16,410" | 416.8mm |
| Crown A/F (C) | 14,975" | 380.4mm |
| Driver OD | 16,313" | 414.4mm |
| Hammer Size | 15" | 381mm |
Product number
| Standard Crown | XS-GTE3-CR18.00/PLUS |
| Driver BIt (add shank type at the end) | XS-GTE3-DR18.00/*** |
Technical Data
| Casing OD | 20,000" | 457.2mm |
| Max. Wall | 0,905" | 23mm |
| Crown OD (A) | 20,500" | 520.7mm |
| Crown ID (B) | 18,100" | 459.7mm |
| Crown A/F (C) | 16,440" | 417.6mm |
| Driver OD | 18,000" | 457.2mm |
| Hammer Size | 15" | 381mm |
Product number
| Standard Crown | XS-GTE3-CR20.00/PLUS |
| Driver BIt (add shank type at the end) | XS-GTE3-DR20.00/*** |
Technical Data
| Casing OD | 22,000" | 558.8mm |
| Max. Wall | 1,000" | 26mm |
| Crown OD (A) | 22,500" | 571.5mm |
| Crown ID (B) | 19,850" | 504.2mm |
| Crown A/F (C) | 18,030" | 458mm |
| Driver OD | 19,750" | 501.7mm |
| Hammer Size | 18" | 457mm |
Product number
| Standard Crown | XS-GTE3-CR22.00/PLUS |
| Driver BIt (add shank type at the end) | XS-GTE3-DR22.00/*** |
Technical Data
| Casing OD | 24,000" | 609.6mm |
| Max. Wall | 1,000" | 26mm |
| Crown OD (A) | 24,500" | 622.3mm |
| Crown ID (B) | 21,150" | 537.2mm |
| Crown A/F (C) | 19,150" | 486.4mm |
| Driver OD | 21,063" | 535mm |
| Hammer Size | 18" | 457mm |
Product number
| Standard Crown | XS-GTE3-CR24.00/PLUS |
| Driver BIt (add shank type at the end) | XS-GTE3-DR24.00/*** |
