Xs GT3 size
products
This system is used for moderate to deep hole drilling when permanent casing installation is required. Casing installation and bedrock drilling is done with the same driver bit. The diameter of the socket in bedrock is equal to the casing ID.
Advantages
- Best pass through system on the market
- More convenient
- Installation of the casing and rock drilling with the same driver bit.
Most popular applications
Piling, micropiling and site investigation
Technical
data

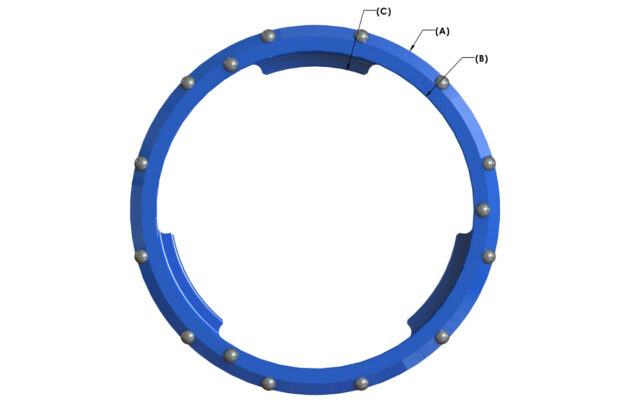

Technical Data
| Casing OD | 10,750" | 273mm |
| Max. Wall | 0,395" | 10mm |
| Crown OD (A) | 12,000" | 304.8mm |
| Crown ID (B) | 9,960" | 253mm |
| Crown A/F (C) | 9,030" | 229.4mm |
| Driver OD | 9,875" | 251mm |
| Hammer Size | 8" | 203.2mm |
Product number
| Standard Crown | XS-GT3-CR10.75/PLUS |
| SA Crown (severe application) | XS-GT3-CR10.75/SA |
| Driver Bit (add shank type at the end) | XS-GT3-DR10.75/*** |
Technical Data
| Casing OD | 11,875" | 301.6mm |
| Max. Wall | 0,588" | 15mm |
| Crown OD (A) | 12,875" | 327mm |
| Crown ID (B) | 10,700" | 271.8mm |
| Crown A/F (C) | 9,500" | 276mm |
| Driver OD | 10,625" | 270mm |
| Hammer Size | 8" | 203.2mm |
Product number
| Standard Crown | XS-GT3-CR11.875/PLUS |
| SA Crown (severe application) | XS-GT3-CR11.875/SA |
| Driver Bit (add shank type at the end) | XS-GT3-DR11.875/*** |
Technical Data
| Casing OD | 12,750" | 324mm |
| Max. Wall | 0,450" | 11.4mm |
| Crown OD (A) | 14,000" | 355.6mm |
| Crown ID (B) | 11,850" | 301mm |
| Crown A/F (C) | 10,870" | 276mm |
| Driver OD | 11,750" | 298.5mm |
| Hammer Size | 10" | 254mm |
Product number
| Standard Crown | XS-GT3-CR12.75/PLUS |
| SA Crown (severe application) | XS-GT3-CR12.75/SA |
| Driver Bit (add shank type at the end) | XS-GT3-DR12.75/*** |
Technical Data
| Casing OD | 14,000" | 355.6mm |
| Max. Wall | 0,500" | 12.7mm |
| Crown OD (A) | 15,500" | 393.7mm |
| Crown ID (B) | 13,000" | 330.2mm |
| Crown A/F (C) | 11,840" | 300.7mm |
| Driver OD | 12,938" | 328.6mm |
| Hammer Size | 10" | 254mm |
Product number
| Standard Crown | XS-GT3-CR14.00/PLUS |
| SA Crown (severe application) | XS-GT3-CR14.00/SA |
| Driver Bit (add shank type at the end) | XS-GT3-DR14.00/*** |
