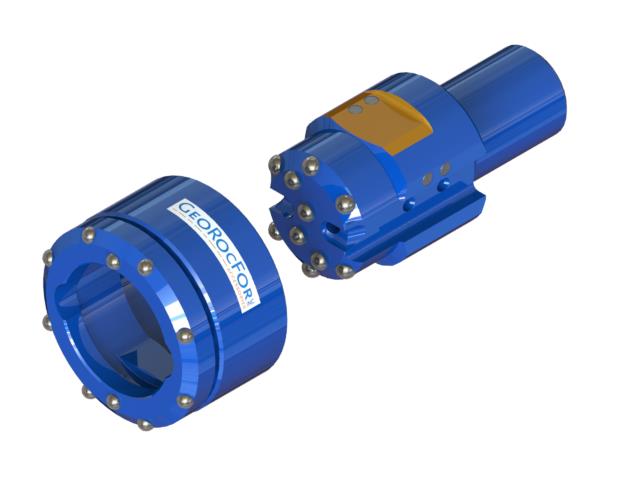

Xs FP / FPH size
products
This is the most economical system for permanent casing installation in shallow to moderate hole drilling.
Advantages
- Very good impact surface
- Very easy to lock/unlock
(especially in NLS configuration)
Most popular applications
Forepoling, exploration and seismic wells
Technical
data
Technical Data
| Casing OD | 5,000" | 127.6mm |
| Max. Wall | 0,393" | 10mm |
| Crown OD (A) | 5,500" | 139.7mm |
| Crown ID (B) | 3,650" | 92.7mm |
| Driver OD | 4,130" | 104.9mm |
| DTH / Thread Size | 3.5" | T51 |
Product number
| Standard Crown | XS-FP-CR5.00 |
| NLS Driver Bit (*** add thread/DTH type) | XS-FP-DR5.00/***NLS |
| Locking Driver Bit (*** add thread/DTH type) | XS-FP-DR5.00/*** |
Technical Data
| Casing OD | 5,000" | 127mm |
| Max. Wall | 0,393" | 10mm |
| Crown OD (A) | 5,500" | 139.7mm |
| Crown ID (B) | 3,580" | 91mm |
| Driver OD | 4,130" | 105mm |
| DTH / Thread Size | 3,5" | T51 |
Product number
| Standard Crown | XS-FPH-CR5.00 |
| Heavy Duty Crown | XS-FPH-CR5.00/HD |
| Clay Crown | XS-FPH-CR5.00/CL |
| NLS Driver Bit (*** add thread/DTH type) | XS-FPH-DR5.00/***NLS |
| Locking Driver Bit (*** add thread/DTH type) | XS-FPH-DR5.00/*** |
Technical Data
| Casing OD | 5,500" | 139.7mm |
| Max. Wall | 0,393" | 10mm |
| Crown OD (A) | 6,000" | 152.4mm |
| Crown ID (B) | 4,250" | 108mm |
| Driver OD | 4,570" | 116mm |
| DTH / Thread Size | 3.5" | GT60 |
Product number
| Standard Crown | XS-FP-CR5.50 |
| NLS Driver Bit (*** add thread/DTH type) | XS-FP-DR5.50/***NLS |
| Locking Driver Bit (*** add thread/DTH type) | XS-FP-DR5.50/*** |
Technical Data
| Casing OD | 5,500" | 139.7mm |
| Max. Wall | 0,393" | 10mm |
| Crown OD (A) | 6,000" | 152.4mm |
| Crown ID (B) | 4,080" | 103.6mm |
| Driver OD | 4,630" | 117.6mm |
| DTH / Thread Size | 3,5" | GT60 |
Product number
| Standard Crown | XS-FPH-CR5.50 |
| Heavy Duty Crown | XS-FPH-CR5.50/HD |
| Clay Crown | XS-FPH-CR5.50/CL |
| NLS Driver Bit (*** add thread/DTH type) | XS-FPH-DR5.50/***NLS |
| Locking Driver Bit (*** add thread/DTH type) | XS-FPH-DR5.50/*** |
Technical Data
| Casing OD | 6,000" | 152.4mm |
| Max. Wall | 0,393" | 10mm |
| Crown OD (A) | 6,500" | 165.1mm |
| Crown ID (B) | 4,650" | 118.1mm |
| Driver OD | 5,130" | 130.3mm |
| DTH / Thread Size | 4" | GT60 |
Product number
| Standard Crown | XS-FP-CR6.00 |
| NLS Driver Bit (*** add thread/DTH type) | XS-FP-DR6.00/***NLS |
| Locking Driver Bit (*** add thread/DTH type) | XS-FP-DR6.00/*** |
Technical Data
| Casing OD | 6,000" | 152.4mm |
| Max. Wall | 0,393" | 10mm |
| Crown OD (A) | 6,500" | 165.1mm |
| Crown ID (B) | 4,530" | 115mm |
| Driver OD | 5,130" | 130.3mm |
| DTH / Thread Size | 3,5" | GT60 |
Product number
| Standard Crown | XS-FPH-CR6.00 |
| Heavy Duty Crown | XS-FPH-CR6.00/HD |
| Clay Crown | XS-FPH-CR6.00/CL |
| NLS Driver Bit (*** add thread/DTH type) | XS-FPH-DR6.00/***NLS |
| Locking Driver Bit (*** add thread/DTH type) | XS-FPH-DR6.00/*** |
