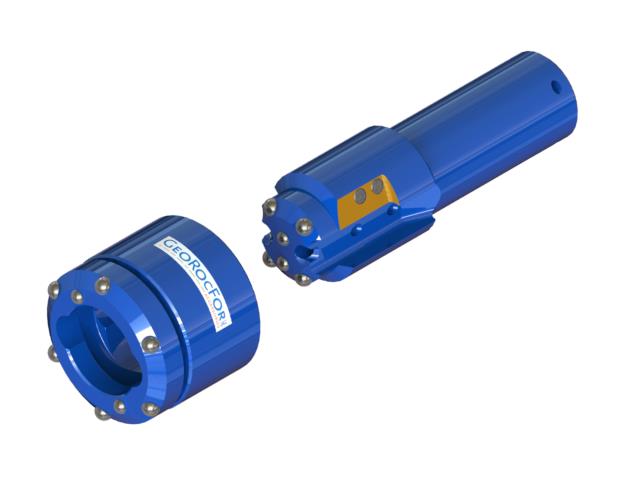

Xs FP / FPH size
products
This is the most economical system for permanent casing installation in shallow to moderate hole drilling.
Advantages
- Very good impact surface
- Very easy to lock/unlock
(especially in NLS configuration)
Most popular applications
Forepoling, exploration and seismic wells
Technical
data
Technical Data
| Casing OD | 3,000" | 76.2mm |
| Max. Wall | 0,313" | 8mm |
| Crown OD (A) | 3,440" | 87.4mm |
| Crown ID (B) | 1,950" | 49.5mm |
| Driver OD | 2,330" | 59.2mm |
| Thread Size | R32 |
Product number
| Standard Crown | XS-FP-CR3.00 |
| NLS Driver Bit (*** add thread type) | XS-FP-DR3.00/***NLS |
| Locking Driver Bit (*** add thread type) | XS-FP-DR3.00/*** |
Technical Data
| Casing OD | 3,000" | 76.2mm |
| Max. Wall | 0,313" | 8mm |
| Crown OD (A) | 3,438" | 87.3mm |
| Crown ID (B) | 1,800" | 45.7mm |
| Driver OD | 2,300" | 58.4mm |
| Thread Size | R32 |
Product number
| Standard Crown | XS-FPH-CR3.00 |
| Heavy Duty Crown | XS-FPH-CR3.00/HD |
| Clay Crown | XS-FPH-CR3.00/CL |
| NLS Driver Bit (*** add thread type) | XS-FPH-DR3.00/***NLS-LP |
| Locking Driver Bit (*** add thread type) | XS-FPH-DR3.00/***-LP |
Technical Data
| Casing OD | 3,500" | 88.9mm |
| Max. Wall | 0,313" | 8mm |
| Crown OD (A) | 4,000" | 101.6mm |
| Crown ID (B) | 2,450" | 62.2mm |
| Driver OD | 2,800" | 71.1mm |
| Thread Size | T38 |
Product number
| Standard Crown | XS-FP-CR3.50 |
| NLS Driver Bit (*** add thread type) | XS-FP-DR3.50/***NLS-LP |
| Locking Driver Bit (*** add thread type) | XS-FP-DR3.50/***-LP |
Technical Data
| Casing OD | 3,500" | 88.9mm |
| Max. Wall | 0,313" | 8mm |
| Crown OD (A) | 4,000" | 101.6mm |
| Crown ID (B) | 2,300" | 58.4mm |
| Driver OD | 2,800" | 71.1mm |
| Thread Size | T38 |
Product number
| Standard Crown | XS-FPH-CR3.50 |
| Heavy Duty Crown | XS-FPH-CR3.50/HD |
| Clay Crown | XS-FPH-CR3.50/CL |
| NLS Driver Bit (*** add thread type) | XS-FPH-DR3.50/***NLS-LP |
| Locking Driver Bit (*** add thread type) | XS-FPH-DR3.50/***-LP |
