Xs F3 size
products

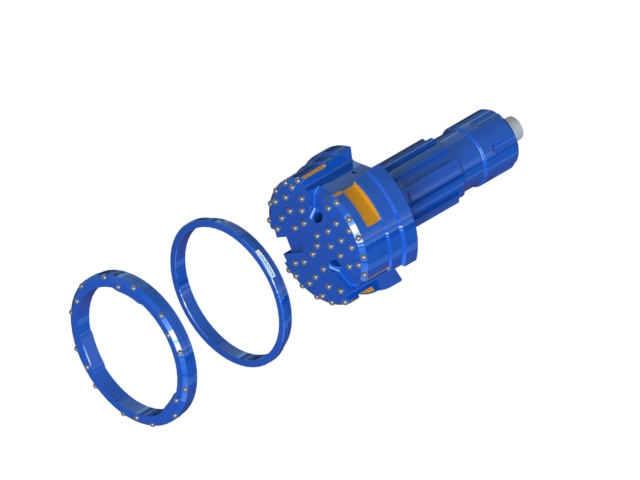

This is the most economical overburden casing system. Used in shallow blind holes where the casing can be left in the ground or pulled back (retrieved).
Advantages
- Drilling diameter adaptable
- Very easy to pull back
- Easy to use
Most popular applications
Piling, micropiling and site investigation
Technical
data

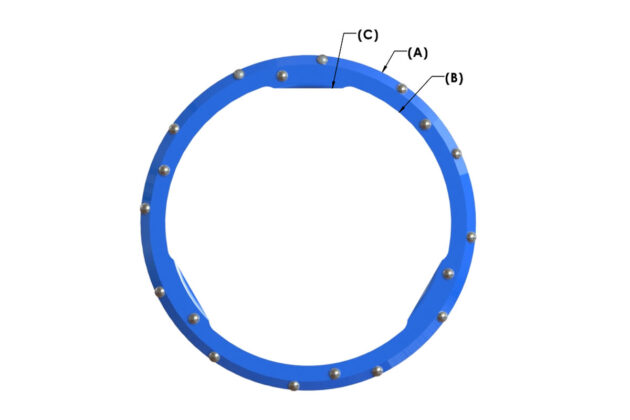

Technical Data
| Casing OD | 16,000" | 406.4mm |
| Max. Wall | 0,500" | 12.7mm |
| Crown OD (A) | 16,500" | 419mm |
| Crown ID (B) | 13,500" | 343mm |
| Crown A/F (C) | 12,500" | 317.5mm |
| Driver OD | 14,900" | 378.5mm |
| Hammer Size | 12" | 305mm |
Product number
| Standard Floating Ring | XS-F3-CR16.00 |
| Welded Ring (add casing wall at the end) | XS-F3-WR16.00x*** |
| Driver Bit (add shank type at the end) | XS-F3-DR16.00/*** |
Technical Data
| Casing OD | 18,000" | 457.2mm |
| Max. Wall | 0,500" | 12.7mm |
| Crown OD (A) | 18,500" | 470mm |
| Crown ID (B) | 15,710" | 399mm |
| Crown A/F (C) | 14,770" | 375.2mm |
| Driver OD | 16,880" | 428.8mm |
| Hammer Size | 12" / 15" | 305mm / 381mm |
Product number
| Standard Floating Ring | XS-F3-CR18.00 |
| Welded Ring (add casing wall at the end) | XS-F3-WR18.00x*** |
| Driver Bit (add shank type at the end) | XS-F3-DR18.00/*** |
Technical Data
| Casing OD | 20,000" | 508mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 20,500" | 520.5mm |
| Crown ID (B) | 17,220" | 437.4mm |
| Crown A/F (C) | 16,060" | 408mm |
| Driver OD | 18,630" | 473.2mm |
| Hammer Size | 15" | 381mm |
Product number
| Standard Floating Ring | XS-F3-CR20.00 |
| Welded Ring (add casing wall at the end) | XS-F3-WR20.00x*** |
| Driver Bit (add shank type at the end) | XS-F3-DR20.00/*** |
Technical Data
| Casing OD | 20,000" | 508mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 20,500" | 520.5mm |
| Crown ID (B) | 17,220" | 437.4mm |
| Crown A/F (C) | 16,060" | 408mm |
| Driver OD | 18,630" | 473.2mm |
| Hammer Size | 15" | 381mm |
Product number
| Standard Floating Ring | XS-F3-CR20.00 |
| Welded Ring (add casing wall at the end) | XS-F3-WR20.00x*** |
| Driver Bit (add shank type at the end) | XS-F3-DR20.00/*** |
Technical Data
| Casing OD | 22,000" | 558.8mm |
| Max. Wall | 0,512" | 13mm |
| Crown OD (A) | 22,500" | 571.5mm |
| Crown ID (B) | 19,470" | 494.5mm |
| Crown A/F (C) | 18,310" | 465mm |
| Driver OD | 20,880" | 530.4mm |
| Hammer Size | 18" | 457.2mm |
Product number
| Standard Floating Ring | XS-F3-CR22.00 |
| Welded Ring (add casing wall at the end) | XS-F3-WR22.00x*** |
| Driver Bit (add shank type at the end) | XS-F3-DR22.00/*** |
Technical Data
| Casing OD | 24,000" | 609.6mm |
| Max. Wall | 0,375" | 9.5mm |
| Crown OD (A) | 24,500" | 622.3mm |
| Crown ID (B) | 21,720" | 551.7mm |
| Crown A/F (C) | 20,560" | 522.2mm |
| Driver OD | 23,130" | 587.5mm |
| Hammer Size | 18" / 20" | 458mm / 508mm |
Product number
| Standard Floating Ring | XS-F3-CR24.00 |
| Welded Ring (add casing wall at the end) | XS-F3-WR24.00x*** |
| Driver Bit (add shank type at the end) | XS-F3-DR24.00/*** |
Technical Data
| Casing OD | 26,000" | 660.4mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 26,750" | 520.5mm |
| Crown ID (B) | 23,220" | 589.8mm |
| Crown A/F (C) | 22,060" | 560.3mm |
| Driver OD | 24,630" | 625.6mm |
| Hammer Size | 24" | 609.6mm |
Product number
| Standard Floating Ring | XS-F3-CR26.00 |
| Welded Ring (add casing wall at the end) | XS-F3-WR26.00x*** |
| Driver Bit (add shank type at the end) | XS-F3-DR26.00/*** |
Technical Data
| Casing OD | 28,000" | 711.2mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 28,750" | 730.3mm |
| Crown ID (B) | 25,220" | 640.6mm |
| Crown A/F (C) | 24,060" | 611mm |
| Driver OD | 26,630" | 676.4mm |
| Hammer Size | 24" | 609.6mm |
Product number
| Standard Floating Ring | XS-F3-CR28.00 |
| Welded Ring (add casing wall at the end) | XS-F3-WR28.00x*** |
| Driver Bit (add shank type at the end) | XS-F3-DR28.00/*** |
Technical Data
| Casing OD | 30,000" | 762mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 30,750" | 871mm |
| Crown ID (B) | 26,600" | 675.6mm |
| Crown A/F (C) | 25,400" | 645.2mm |
| Driver OD | 28,500" | 723.9mm |
| Hammer Size | 24" | 609.6mm |
Product number
| Standard Floating Ring | XS-F3-CR30.00 |
| Welded Ring (add casing wall at the end) | XS-F3-WR30.00x*** |
| Driver Bit (add shank type at the end) | XS-F3-DR30.00/*** |
Technical Data
| Casing OD | 32,000" | 812.8mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 32,750" | 832mm |
| Crown ID (B) | 28,600" | 726.4mm |
| Crown A/F (C) | 27,400" | 696mm |
| Driver OD | 30,500" | 774.7mm |
| Hammer Size | 24" | 609.6mm |
Product number
| Standard Floating Ring | XS-F3-CR32.00 |
| Welded Ring (add casing wall at the end) | XS-F3-WR32.00x*** |
| Driver Bit (add shank type at the end) | XS-F3-DR32.00/*** |
Technical Data
| Casing OD | 36,000" | 914.4mm |
| Max. Wall | 0,625" | 16mm |
| Crown OD (A) | 36,750" | 933.5mm |
| Crown ID (B) | 32,600" | 828mm |
| Crown A/F (C) | 31,400" | 797.6mm |
| Driver OD | 34,500" | 876.3mm |
| Hammer Size | 30" | 762mm |
Product number
| Standard Floating Ring | XS-F3-CR36.00 |
| Welded Ring (add casing wall at the end) | XS-F3-WR36.00x*** |
| Driver Bit (add shank type at the end) | XS-F3-DR36.00/*** |
