Xs F3 size
products

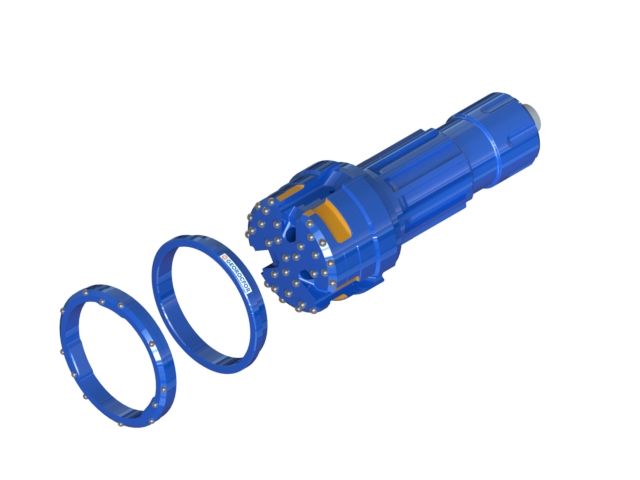

This is the most economical overburden casing system. Used in shallow blind holes where the casing can be left in the ground or pulled back (retrieved).
Advantages
- Drilling diameter adaptable
- Very easy to pull back
- Easy to use
Most popular applications
Piling, micropiling and site investigation
Technical
data
Technical Data
| Casing OD | 12,750" | 323.9mm |
| Max. Wall | 0,375" | 9.5mm |
| Crown OD (A) | 13,000" | 330.2mm |
| Crown ID (B) | 11,080" | 281.4mm |
| Crown A/F (C) | 10,300" | 261.6mm |
| Driver OD | 11,930" | 303mm |
| Hammer Size | 10" | 254mm |
Product number
| Standard Floating Ring | XS-F3-CR12.75 |
| Welded Ring (add casing wall at the end) | XS-F3-WR12.75x*** |
| Driver Bit (add shank type at the end) | XS-F3-DR12.75/*** |
Technical Data
| Casing OD | 12,750" | 323.9mm |
| Max. Wall | 0,375" | 9.5mm |
| Crown OD (A) | 13,000" | 330.2mm |
| Crown ID (B) | 10,860" | 275.8mm |
| Crown A/F (C) | 10,050" | 255.3mm |
| Driver OD | 11,930" | 303mm |
| Hammer Size | 10" | 254mm |
Product number
| Standard Floating Ring | XS-F3-CR12.75-B |
| Welded Ring (add casing wall at the end) | XS-F3-WR12.75-Bx*** |
| Driver Bit (add shank type at the end) | XS-F3-DR12.75-B/*** |
Technical Data
| Casing OD | 13,375" | 339.7mm |
| Max. Wall | 0,513" | 13mm |
| Crown OD (A) | 13,625" | 346mm |
| Crown ID (B) | 11,480" | 291.6mm |
| Crown A/F (C) | 10,650" | 270.5mm |
| Driver OD | 11,690" | 297mm |
| Hammer Size | 10" | 254mm |
Product number
| Standard Floating Ring | XS-F3-CR13.375-C |
| Welded Ring (add casing wall at the end) | XS-F3-WR13.375-Cx*** |
| Driver Bit (add shank type at the end) | XS-F3-DR13.375-C/*** |
Technical Data
| Casing OD | 14,000" | 355.6mm |
| Max. Wall | 0,375" | 9.5mm |
| Crown OD (A) | 14,500" | 368.3mm |
| Crown ID (B) | 12,000" | 304.8mm |
| Crown A/F (C) | 11,250" | 285.8mm |
| Driver OD | 13,125" | 333.4mm |
| Hammer Size | 10" / 12" | 254mm / 304.8mm |
Product number
| Standard Floating Ring | XS-F3-CR14.00 |
| Welded Ring (add casing wall at the end) | XS-F3-WR14.00x*** |
| Driver Bit (add shank type at the end) | XS-F3-DR14.00/*** |
